1D and 2D barcodes - what’s the difference?
What is the difference between a 1D and a 2D barcode? It's a question we hear a lot from customers when they first start looking at label and date code verification.
What’s the difference between a 1D and a 2D barcode? It's a question we hear a lot from customers when they first start looking at label and date code verification. Here’s our short guide explaining the main differences between the two and why food manufacturers use 2D rather than 1D barcodes when verifying their packaging.
1D barcode
EAN128 1D Barcode
A 1D or single dimensional barcode is made up of vertical lines which vary in width on a contrasting background collectively forming an image. Alphanumeric data (i.e. letters and numbers) are encoded within the lines and spaces, although with a limit on the number of characters, and linked to a database where the data are housed. When the barcode is scanned using either a camera-based imaging scanner or laser-based scanner, the encoded data is decrypted revealing the information input within the database. The more data stored within, the longer the barcode.
1D barcodes are widely used in the retail industry as they’re better suited to applications where certain information, e.g. price, may change frequently yet the actual product’s identity number stays the same. In the food manufacturing industry, the retailer has control over the 1D barcode as it is this which links to the retailers’ tills for stock control and price monitoring.
2D QR Code
2D barcode
2D barcodes are two-dimensional barcodes made up of a matrix of shapes (dots, squares, hexagons etc.) with data coded both vertically and horizontally. Depending on the type of 2D barcode, it can typically house more than just alphanumerical data, as well as holding much greater volumes of data than a 1D barcode at a much smaller size.
ECC200 2D Barcode
How are 2D barcodes used?

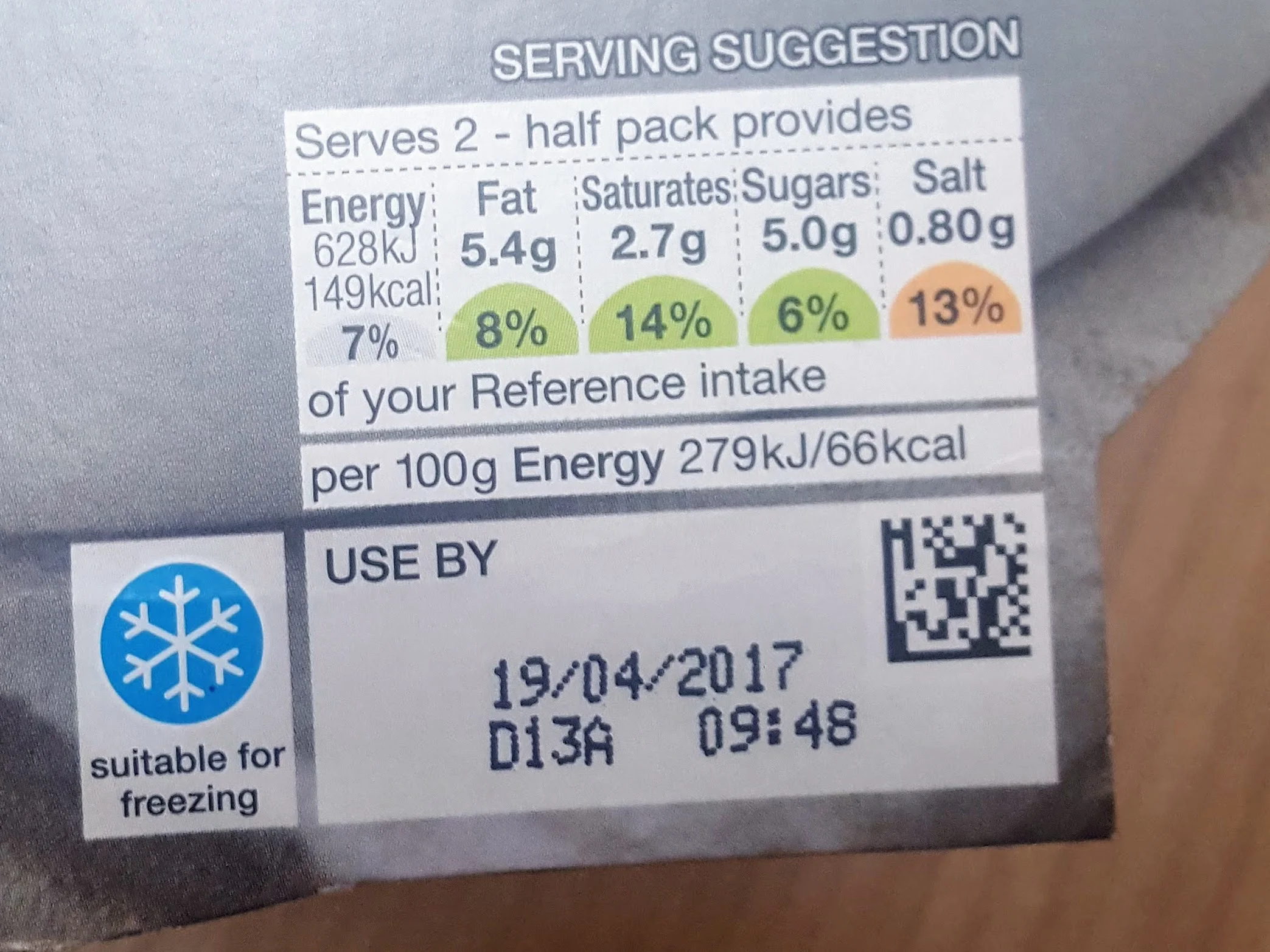

In the food manufacturing environment, 2D barcodes are used to check the packaging revision/artwork number to ensure that the product running is packed in the correct packaging. The manufacturer has control of this barcode, with a unique one for each packaging variation.
The changes on the packaging could be very slight, for example, a ‘new recipe’ flash could have been added or the packaging could be advertising a promotion. These adjustments may not be immediately obvious, which is why visual checks are not reliable especially when 60 packs are running past your eyes every minute! In certain circumstances, for example a new recipe, not having the right packaging could be fatal to the consumer if an allergen has been added so 2D barcodes can bring additional security to your packaging line.
Our Autocoding label & date code verification system safeguards your operations by scanning the 2D barcode on each and every product travelling down the packaging line and comparing the information to the job information programmed by the Technical Manager in the supervisory area of the system. This reliably ensures that the packaging is the correct variant allocated to that job and significantly reduces the costly risk of product recalls and withdrawals caused by label and packaging errors, as well as protecting the consumer from any incorrect allergen information.
Why do we use 2D barcodes to verify label and date codes?
We use 2D barcodes because these are the most reliable in the food manufacturing environment to help keep your factory, your products and your brand secure!
A major benefit of using 2D barcodes as opposed to 1D barcodes is that they can still work if slightly damaged, which is a huge benefit in the variable working conditions of a food manufacturing environment.
In addition, retailers rely on 1D barcodes for stock and price control; every time a price is altered, retailers must reset their tills to download the new information. If the packaging version information was held within the 1D barcode, the barcode would need to be extended to take on board the new information - taking up valuable packaging real estate - and the retailers would be forever resetting their tills! 2D codes offer a useful solution, allowing all of the information required by you, the manufacturer, to be kept separate in a very small space so that the packaging artwork is not disrupted.
Using 2D barcodes and implementing the OAL Connected system gives the manufacturer full control and a reliable way to ensure that the packaging used for a job is correct regardless of any major or minor changes that are made, however last minute, and may not be as noticeable to the human eye.
If a 2D barcode is scanned and the code does not match the one input for that job prior to starting production, then the line automatically stops, and an alarm and red light alerts the Production Manager of the error. The system will then request that the issue is resolved, the solution recorded and additional QA checks are carried out before production can recommence, protecting you from the financial and brand repercussions of a product recall.
To find out more about how the OAL Connected system works, check out our case studies or download our white paper!
Top five reasons for label and packaging errors in food processing
Faye Louch, one of our trainers explains her top five reasons for label and packaging errors in food manufacturing.
Faye Louch is one of our trainers, helping manufacturers eliminate label and date code errors with our market leading Autocoding system and save money through increased efficiency. We asked her for her top five reasons for label and packaging errors in food manufacturing.
1. Human errors in food processing
We've all seen the trend for food retailers to implement category ranges, like 'food-to-go', so the products have unified branding. But this has created difficulties for operators ensuring the correct labels are applied to products. It's now commonplace for all products to have the same design with just one word different on the label artwork; hence it's very easy to select the wrong labels when working in the high speed, quick changeover environment of a food factory.
“I have seen many errors when setting up printers, it’s all too easy to change the date and not the month or put the 32nd of a date. Although quality checks seek to prevent errors when signing off labels, these can be easily missed when you are trying to check 10 or more things as well as keeping an eye on the production line.
”
2. Promotional activities
In most cases promotions are briefed to the production team at the last minute or packaging arrives just before production starts. This increases the pressure on the team and can lead to a lack of clarity on when the promotion was meant to start and finish. Incorrectly packing product into promotional packs after the promotion has ended can lead to retailer fines and claims for loss of income due to the wrong prices being scanned at the tills.
3. Supplier packaging errors
Packaging suppliers make errors too! Splice reels of labels or films are more common than most people think. The difficulty with this, especially due to similar artwork designs, is that it's almost impossible for operators to spot mistakes on the line. 30-minute quality checks (applying a label to a check sheet and signing it off) may catch some, but if the splice error occurs between a check and in some cases reverts back to the correct label, the error will not be noticed until the dreaded phone call from the retailer.
These errors from the suppliers can often go undetected or incorrectly identified as operator errors which may lead to misplaced disciplinary action but without the necessary evidence and it’s very hard to prove otherwise.
4. Equipment errors
If a printer goes into a “fault” state then this can usually lead to one of two things.
The printer stops printing but the line carries on running. This can result in unprinted or badly printed packs. If these are not detected by the operator at the end of the line then these could go out to the customer.
The date code can revert to a default setting. This has been seen on a number of printers. If this change in date is not detected then this will potentially result in a product withdrawal.
5. Last minute dot com…
The nature of the food industry means we have to respond to changes quickly, often at the last minute. Quick decisions and high production demand naturally lead to errors. Incorrect packaging being issued to the line, coupled with quick, inaccurate checks can usually lead to incorrect packaging being used.
Date code, print information required for the product needs to be accurate to ensure what is being printed on the packs is correct. Last minute information is often incorrect or misinterpreted on the shop floor resulting in the wrong date codes being printed. Usually, these are only detected by the retailer or after the production run, resulting in costly re-work.
